120m2 Fgd Exhaust Gas Scrubber Fiberglass Desulfurization Dust Collector

Name: 120m2 Fgd Exhaust Gas Scrubber Fiberglass Desulfurization Dust Collector
Brand: XINCHEN
Price: 1 USD

China 120m2 Fgd Exhaust Gas Scrubber Fiberglass Desulfurization Dust Collector wholesale

Brand Name : XINCHEN

Model Number : Desulfurization dust collector

Certification : SGS ISO CE

Place of Origin : China (Mainland)

MOQ : Negotiate

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 30 days after receiving down payment

Packaging Details : Plastic film inner packing, export special wooden box outer packing.

Name : Desulfurization dust collector

air volume : 10800-18000m3/h

filting area : 120m2

filting airspeed : 1.5-2.5m/min

dust removing pressure : 0.4-0.6Mpa

Applicable Industries : Building Material Shops, Manufacturing Plant

Core Components : PLC, Motor, filter bag

Minimum Particle Size : 0.3 micron

Contact Now

120m2 High Efficiency Sncr And Scr Denitrification Equipment

product description

The classification of fiber glass purification tower : Wet Exhaust Gas Cleaning and Dry Exhaust Gas Scrubber.Wet Exhaust Gas Cleaning divided into : packed tower, scrubber tower, desulfurizing tower,Swirl plate tower ,bubble cap tower,stripping tower,absorbing tower; Dry Exhaust Gas Scrubber divided into: activated carbon adsorption tower ,SDG dry acid waste gas adsorption tower . It apply to dispose harmful gas: sulfuric acid mist (H2SO4), hydrogen chloride (HCL) gas and hydrogen fluoride (HF) gas, chromium acid (CrO3), hydrogen cyanide gas (HCN), hydrogen sulfide (H2S), ammonia (NH3), nitrogen oxide (NOx), organic acid, benzene e,etc. The adopted way is different according to different waste gas.It is more better that using dry adsorption way for organic waste gas, and using wet purification or wet+dry adsorption way for Inorganic acid .

Techinal parameters

Model	filting area(m2)	air volume(m3/h)	filting airspeed(m/min)	working resistance(Pa)	dust removing pressure(Mpa)
DMC-32	30	2880-4800	1.5-2.5	800-1800	0.4-0.6
DMC-48	48	4320-7200	1.5-2.5	800-1800	0.4-0.6
DMC-60	60	5400-9000	1.5-2.5	800-1800	0.4-0.6
DMC-72	72	6480-10800	1.5-2.5	800-1800	0.4-0.6
DMC-90	90	8100-13500	1.5-2.5	800-1800	0.4-0.6
DMC-120	120	10800-18000	1.5-2.5	800-1800	0.4-0.6
DMC-150	150	13000-22500	1.5-2.5	800-1800	0.4-0.6
DMC-180	180	16200-27000	1.5-2.5	800-1800	0.4-0.6
DMC-210	210	18900-31500	1.5-2.5	800-1800	0.4-0.6
DMC-250	250	22500-37500	1.5-2.5	800-1800	0.4-0.6
DMC-270	270	24300-40500	1.5-2.5	800-1800	0.4-0.6
DMC-300	300	27000-45000	1.5-2.5	800-1800	0.4-0.6
DMC-340	340	30400-51000	1.5-2.5	800-1800	0.4-0.6
DMC-420	420	37800-63000	1.5-2.5	800-1800	0.4-0.6
DMC-500	500	45000-75000	1.5-2.5	800-1800	0.4-0.6
DMC-600	600	54000-90000	1.5-2.5	800-1800	0.4-0.6
DMC-740	740	66600-111000	1.5-2.5	800-1800	0.4-0.6
DMC-870	870	78300-130500	1.5-2.5	800-1800	0.4-0.6
DMC-1000	1000	90000-150000	1.5-2.5	800-1800	0.4-0.6
DMC-1100	1100	99000-165000	1.5-2.5	800-1800	0.4-0.6

Structure Composition

The customized dust catcher are composed by the filter chamber housing, clean air chamber enclosure, filter bag, filter cage, pulse injection device, ash hopper, screw conveyor and discharger, etc. At the end, it needs centrifugal fan for power system. In another type of dust catcher, the dedusting job can be done by every chamber isolation. The every chamber of the pulse and soot cleaning cycle by soot cleaning program controller.

Equipment advantages

The DMC bag-type pulse dust collector in this project adopts the national JB/T8532-2008 standard design, and its performance characteristics are as follows:
The DMC bag-type pulse dust collector adopts a right-angle pulse valve for single-row jet cleaning and has a strong cleaning ability; Expanded ring filter bag mouth design, good sealing effect, convenient assembly and disassembly;
High-quality steel wire, multi-point welding automatic production line, galvanized protection treatment process, the filter bag frame produced has high strength and rigidity, without welding burrs, which reduces the mechanical wear of the filter bag and prolongs its service life;
The installation and maintenance mode of the uncovered cover, the filter bag replacement is quick and convenient;
DMC pulse bag filter adopts PLC or special program controller to control pulse dust removal, which is reliable in operation and high in automation.

Pictures

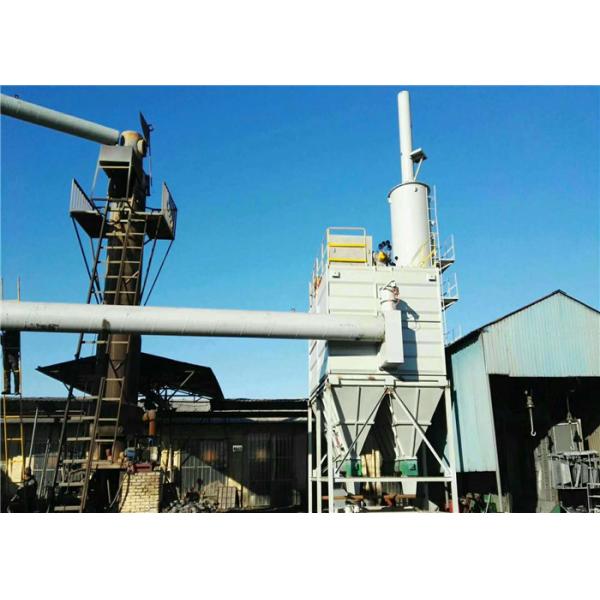

120m2 Fgd Exhaust Gas Scrubber Fiberglass Desulfurization Dust Collector
